Keywords

Coiled-Coil, Sequence Analysis, Helical Motifs, Protein Structure, Prediction Algorithm, Gaussian Distribution, Heptad Repeat

Reference

DOI: https://doi.org/10.1126/science.252.5009.1162

Abstract

Coiled coils are structural motifs formed by two or three α-helices winding around each other, critical in many biological processes.
This study presents a sequence-based method to predict coiled-coil regions by comparing flanking sequences of unknown proteins to those of known coiled-coil proteins.
Using a sliding window approach with heptad frames, the method identifies coiled-coil segments even within otherwise globular proteins and predicts regions of discontinuity like hinge regions.
More than 200 putative coiled-coil-containing proteins were identified in GenBank, spanning structural and regulatory proteins, including tubulins, flagellins, G protein subunits, tRNA synthetases, and Hsp70 family members.

Notes

1. Pre-Knowledge

  • Coiled coils: Motifs of two or three helices, parallel, crossing at ~20°, amphipathic, built on heptad repeats (abcdefg) — hydrophobic at positions a, d, polar/hydrophilic at other sites.

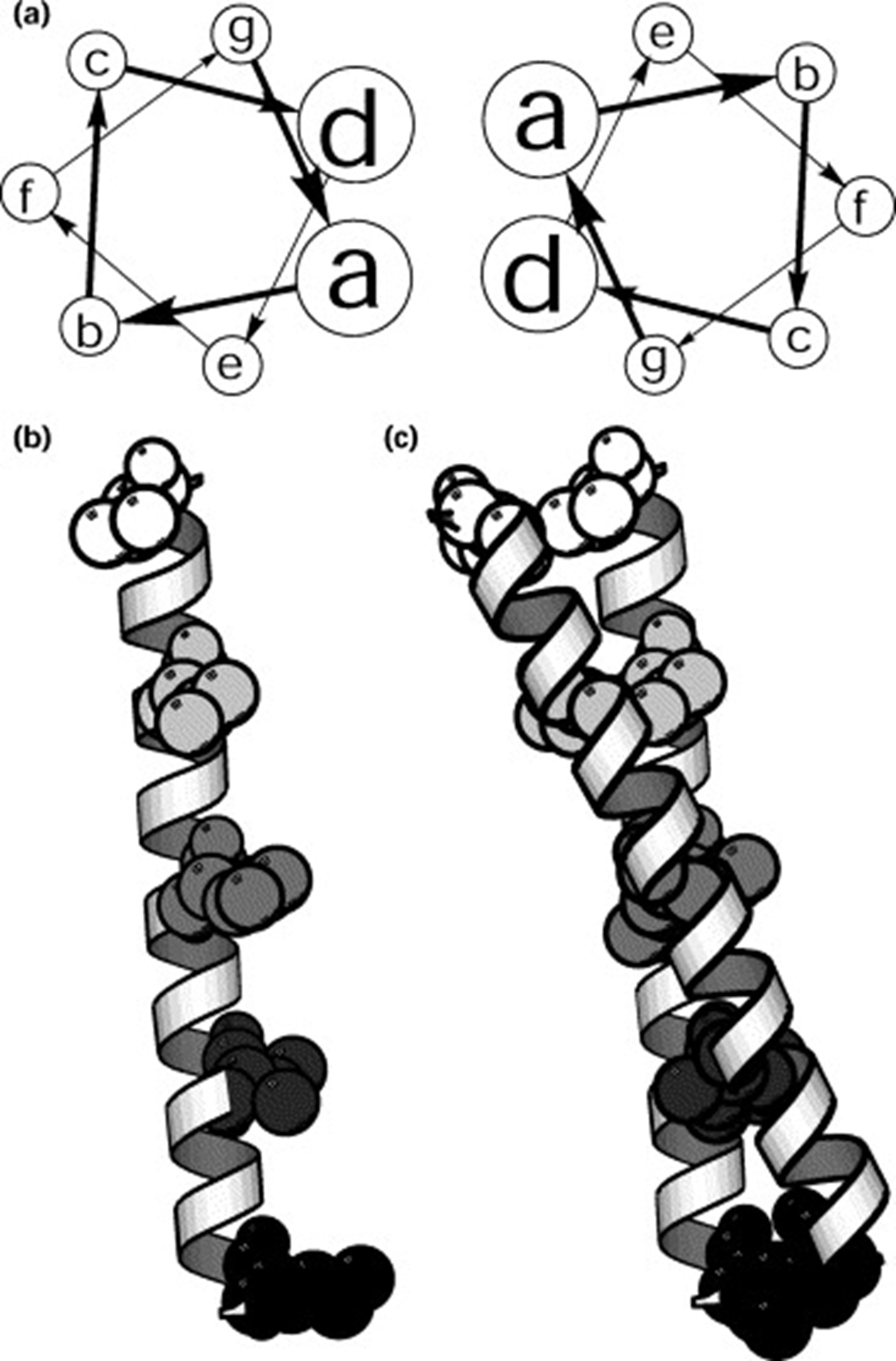

Figure: a pic from https://www.cell.com/structure/fulltext/S1359-0278%2897%2900021-7 (available 23.05.15) (Click to enlarge)

  • Known functions: Leucine zippers, transcriptional regulators, cytoskeletal elements (e.g., myosin).

2. Methodology

Sliding Window and Heptad Frames

  • 28-residue sliding window: Chosen because 4–5 heptads (~28 residues) represent the minimum stable coiled-coil unit in solution.
  • Each window analyzed in 7 possible heptad frames, yielding 196 scores per residue (28 positions × 7 frames).
  • Highest score per residue selected to evaluate coiled-coil likelihood.

3. Coiled-Coil Prediction Algorithm

  • Gaussian distributions for coiled-coil (Gcc(S)) and globular (Gg(S)) scores derived from known structures.
  • Coiled-coil to globular ratio estimated from GenBank: 1:30.
  • Final probability formula:
    [ P(S) = \frac{G_{cc}(S)}{30G_{g}(S) + G_{cc}(S)} ]
  • Residues with ( P(S) > 0.99 ) confidently identified as part of coiled-coils.

4. Cool Findings and Applications

  • ~200 proteins with probable coiled-coil domains found in GenBank.
  • Predictions included known coiled-coil-containing proteins (e.g., leucine zippers, myosins) and unexpected candidates (e.g., G-protein β-subunits, tRNA synthetases, Hsp70).
  • Predicted discontinuities in known coiled-coils, e.g., hinge regions in myosin.
  • Globins, immunoglobulins — correctly excluded, showing high specificity.
  • The estimated natural occurrence ratio (1 coiled-coil residue per 30 globular residues) reveals their significance yet relative scarcity.

5. Some Inspiration and Methodological Ideas

  • Gaussian fitting to histograms for score distributions — can be implemented in modern tools like Python!
  • Statistical modeling of motif likelihoods adaptable to other repeats or structural features.
  • First-generation sequence-based prediction approach — foundation for today’s sophisticated coiled-coil predictors.
  • Identification of functional motifs hidden in globular domains — suggests roles beyond structural (e.g., regulatory roles of coiled-coils).

RD’s Thoughts and Learnings

  • Really elegant and forward-thinking for 1991 — still inspiring for modern bioinformatics!
  • Sliding window & heptad-frame exploration provides depth in motif recognition — robust and intuitive.
  • Simple Gaussian mixture model effectively discriminates structural motifs in sequences.
  • The approach of combining probabilistic modeling with biophysical knowledge (like heptad patterns) is super inspiring for modern AI-based structural prediction.
  • Could be extended to new motifs (e.g., tandem repeats, β-propellers).
  • Love the idea that coiled-coils can hide in globular proteins, ready to be “unfolded” into function when needed.
  • Would love to implement this in Python for fun and training — could be a great exercise in sequence-based bioinformatics!

Take-home Messages

  • Coiled coils can be predicted from sequence via sliding windows + heptad frame analysis.
  • Probabilistic scoring using Gaussian distributions allows accurate motif detection.
  • More than 200 predicted coiled-coil-containing proteins, spanning diverse functions.
  • Foundational method for modern coiled-coil prediction algorithms.
  • RD finds this paper conceptually elegant and methodologically powerful — worth re-visiting with today’s computational tools!

RD’s final word: Simple, smart, and ahead of its time — this paper is a classic. Would definitely love to code up a modern version! 💡🧬✨
